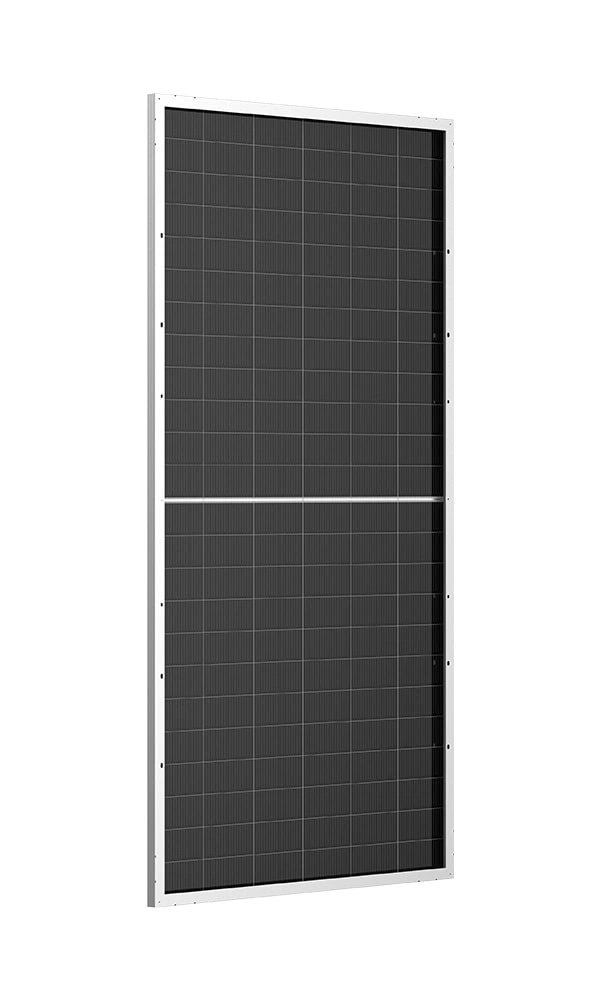

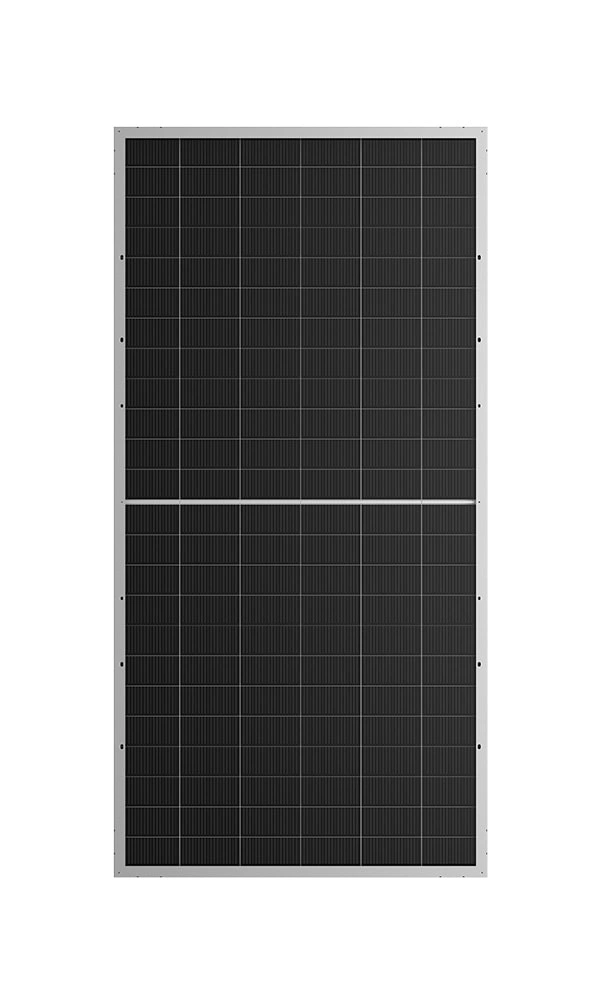

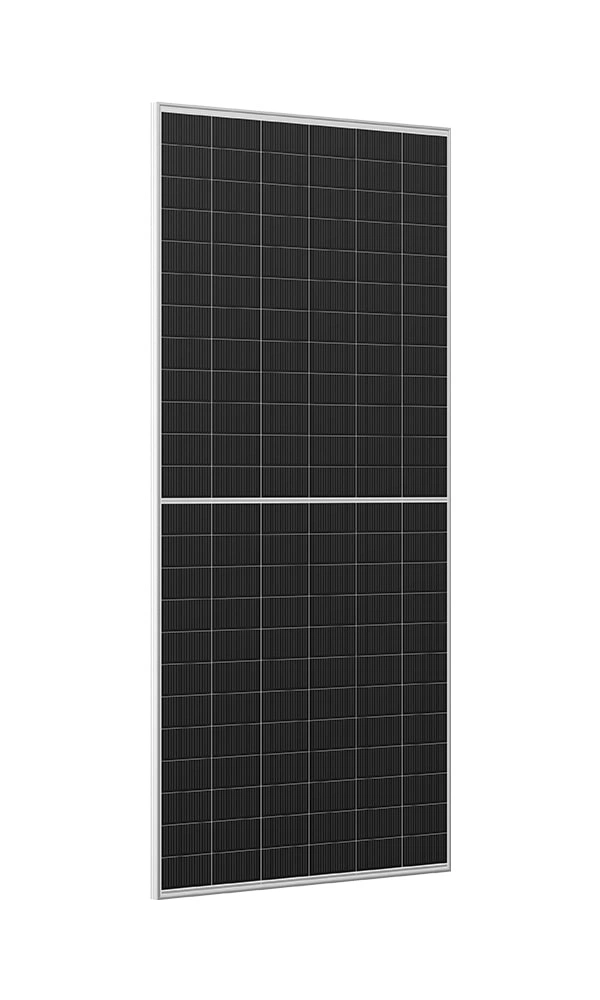

Jinko TiGER Neo 580W 590W 600W N Type TOPCon Bifacial Dual Glass Solar Panel

Comparte:

  • High Power

    This module delivers up to 600W with maximum efficiency of 23.23%, ensuring superior energy yield for residential, commercial, and utility-scale solar installations.

  • Zero Light Decay

    N-Type TOPCon technology minimizes LID and LeTID effects, maintaining stable power output over the module's lifetime even under intense solar irradiation.

    • Bulk Order of 580–600 Watt Bifacial Dual-Glass Solar Module
    • Jinko N-Type TOPCon 580-600W 144 Cells Solar Panel Supplier
    • Jinko N-Type TOPCon 580-600W 144 Cells Solar Panel Supplier
    • Cost Price of 580-600W Mono Bifacial Dual-Glass Photovoltaic Panel

  • Lower Annual Degradation

    With only 0.40 % annual power degradation, the module maintains high output over 30 years, maximizing long-term energy production and return on investment.

  • Excellent Low-Light Performance

    N-Type cells and TOPCon technology enhance photon absorption under low irradiance, ensuring better energy harvest during cloudy conditions, mornings, and evenings.

    • Consulte Descargar
    • Bulk Order of 580–600 Watt Bifacial Dual-Glass Solar Module
    • Jinko N-Type TOPCon 580-600W 144 Cells Solar Panel Supplier
    • Jinko N-Type TOPCon 580-600W 144 Cells Solar Panel Supplier
    • Cost Price of 580-600W Mono Bifacial Dual-Glass Photovoltaic Panel
    Consulte Descargar

  • High Power

    This module delivers up to 600W with maximum efficiency of 23.23%, ensuring superior energy yield for residential, commercial, and utility-scale solar installations.

  • Zero Light Decay

    N-Type TOPCon technology minimizes LID and LeTID effects, maintaining stable power output over the module's lifetime even under intense solar irradiation.

  • Lower Annual Degradation

    With only 0.40 % annual power degradation, the module maintains high output over 30 years, maximizing long-term energy production and return on investment.

  • Excellent Low-Light Performance

    N-Type cells and TOPCon technology enhance photon absorption under low irradiance, ensuring better energy harvest during cloudy conditions, mornings, and evenings.

    PRODUCTOS RELACIONADOS

    Parámetros mecánicos

    Nº de células144 (72×2)
    Dimensiones2278 × 1134 × 30mm
    Front Glass2.0 mm, Anti-reflection Coating
    Back Glass2.0 mm, Heat Strengthened Glass
    FrameAnodized Aluminium Alloy
    Peso31.0 kg
    Output Cables4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length
    Embalaje36pcs per pallet/720pcs per 40’HC

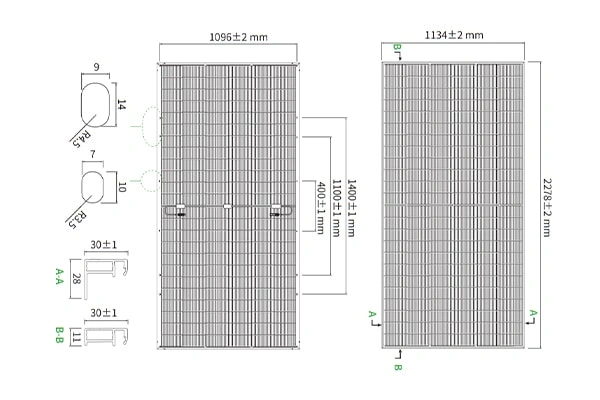

    2278×1134×30 mm 580W 590W 600W 144-Cell Jinko Bifacial PV Panel
    Detailed diagram showing the precise mounting hole locations for the 72-half cut cells 580W 590W 600W solar module, ensuring secure and accurate installation on any compatible racking system.

    Parámetros eléctricos (STC*)

    Module Type: JKM 72HL4-BDV575580585 590595 600
    Potencia máxima (Pmax/W)575580585 590 595600
    Tensión en circuito abierto (Voc/V)52.3052.5052.7052.9053.1053.30
    Corriente de cortocircuito (Isc/A)13.8913.9514.0114.0714.1314.19
    Tensión a máxima potencia (Vmpp/V)43.7343.8844.0244.1744.3144.45
    Corriente a máxima potencia (Imp/A)13.1513.2213.2913.3613.4313.50
    Eficiencia del módulo (%)22.2622.4522.6522.8423.0323.23

    JINKO N-Type TOPCon Bifacial Solar Panel - Technical Highlights

    Highlight CategoryTechnical Details & Customer Value
    Advanced N-Type TOPCon Technology
    - Integrates Tunnel Oxide Passivating Contacts (TOPCon) to minimize LID/LeTID degradation.
    - First-year power loss: Only 1%; Annual degradation over 30 years: 0.40%- Value: Ensures long-term stable energy output under intense solar irradiation, maximizing ROI for utility-scale, commercial, and residential projects.
    Bifacial Dual-Glass Design
    - Dual-sided power generation: Energy gain increases with backside light exposure, significantly reducing LCOE.
    - Glass specifications: 2.0mm anti-reflection front glass (enhances light transmittance) + 2.0mm heat-strengthened back glass (improves durability).- Value: Boosts total energy yield while withstanding environmental stressors (e.g., humidity, corrosion).
    High Power & Peak Efficiency
    - Maximum power rating: Up to 600W; Peak module efficiency (STC): Up to 23.23%
    - Cell configuration: 144 half-cut cells (72×2) for optimized current distribution.
    - Enhanced by SMBB technology: Improves light trapping and current collection.- Value: Delivers exceptional energy yield per unit area, reducing installation space and BOS costs.
    Superior Low-Light Performance- N-Type cell structure + TOPCon technology: Enhances photon absorption under low irradiance.
    - Performance: Maintains stable output in cloudy weather, mornings, and evenings.
    - Value: Extends daily energy harvest time, increasing overall project energy production.
    Robust Mechanical & Environmental Durability- Mechanical load resistance: Certified for 5400Pa front-side & 2400Pa rear-side static test loads (adapts to wind/snow).
    - Anti-PID guarantee: Minimizes degradation via optimized cell production and material control.
    - Protective components: Anodized aluminum alloy frame + IP68-rated junction box (Class II protection, IEC Fire Type C).
    - Value: Ensures long service life in diverse climates (high temperature, coastal humidity, etc.).
    Industry-Leading Warranties & Compliance- Warranties: 12-year product warranty + 30-year linear power warranty.
    - Certifications: Complies with IEC61215:2021, IEC61730:2023, IEC61701 (salt mist), ISO9001/14001/45001.
    - Value: Reduces operational risks; meets global technical/safety standards for seamless project approval.
