Sunpal 210mm Mono 100W 20 Cells Flexible Solar Panel For Sale

Partager :

  • Optimal Power Output and Efficiency

    With a peak power of 100W and a module efficiency of 18.47%, this panel ensures excellent energy conversion, making it a great choice for maximizing power output in space-constrained installations.

  • Large gamme de températures de fonctionnement

    The panel operates efficiently within a temperature range of -40°C to +85°C, ensuring reliable performance in both hot and cold climates, making it suitable for use in diverse environmental conditions.

    • 100W Mono Flexible Solar Panel Bulk Sales
    • Flexible 100W Mono 20 Cells PV Panel Wholesaler
  • Flexible and Lightweight Design

    With a thickness of just 2.5mm and a weight of 1.98kg, this panel is highly flexible, allowing easy integration into curved surfaces while remaining lightweight and easy to handle during installation.

  • Durability in Harsh Conditions

    Built with ETFE and EVA composite films, the panel offers 95% light transmittance and durability, while the IP65/IP67-rated waterproof junction box ensures protection against dust, moisture, and extreme weather.

    • 100W Mono Flexible Solar Panel Bulk Sales
    • Flexible 100W Mono 20 Cells PV Panel Wholesaler
  • Optimal Power Output and Efficiency

    With a peak power of 100W and a module efficiency of 18.47%, this panel ensures excellent energy conversion, making it a great choice for maximizing power output in space-constrained installations.

  • Large gamme de températures de fonctionnement

    The panel operates efficiently within a temperature range of -40°C to +85°C, ensuring reliable performance in both hot and cold climates, making it suitable for use in diverse environmental conditions.

  • Flexible and Lightweight Design

    With a thickness of just 2.5mm and a weight of 1.98kg, this panel is highly flexible, allowing easy integration into curved surfaces while remaining lightweight and easy to handle during installation.

  • Durability in Harsh Conditions

    Built with ETFE and EVA composite films, the panel offers 95% light transmittance and durability, while the IP65/IP67-rated waterproof junction box ensures protection against dust, moisture, and extreme weather.

    • Paramètres mécaniques

      Nombre de cellules210 x105 Mono

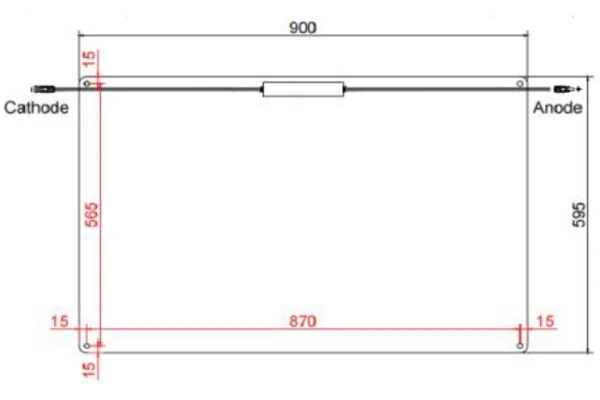

      Dimensions900*595*3mm
      Poids1.98kg
      Boîte de jonctionIP65/IP67

      Paramètres électriques (STC*)

      Type de module :SP100M-10
      Puissance maximale (Pmax/W)100
      Tension en circuit ouvert (Voc/V)13.29
      Courant de court-circuit (Isc/A)9.39A
      Tension à la puissance maximale (Vmpp/V)11.27
      Courant à la puissance maximale (Imp/A)8.88
      Efficacité du module (%)18.47

      TEMPÉRATURE ET VALEUR MAXIMALE

      Tension maximale du système (V)1000
      Calibre maximal des fusibles de la série (A)10
      Tolérance de puissance0~+3%
      Pmax Coefficients de température (W/C)-0.400%
      Voc Coefficients de température (V/C)-0.330%
      Coefficients de température Isc (A/C)+0.048%
      NOCT Température nominale de fonctionnement de la cellule (℃)45±2
      Température de fonctionnement et de stockage (℃)-40~+85
